Carmix 45FX is Metalgalante’s biggest self-loading mixer

First published at bauma - April 10, 2019

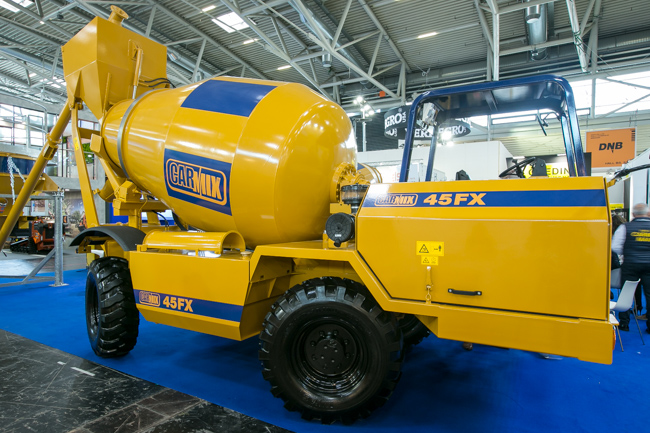

Metalgalante - Carmix 45FZThe Carmix 45FX produced 4.5m3 of concrete

Metalgalante Carmix is adding to its range of self-loading concrete mixers with the Carmix 45FX, the biggest one yet with a production capacity of 4.5m3 of concrete. This joins the Carmix 25 FX with a capacity of 2.5m3 and the Carmix ONE which produces 1m3.

“We make two different lines: small mobile batching plants and the simpler, self-loading line. This is something in between,” said Metalgalante Carmix marketing director Manuela Galante. “It is very simple to use but we have installed a load cell system, so it gives the same quality as a batching plant.”

The mixer has four load cells sensors, controlled by an on-board programmable computer, placed at the bottom of the drum. This is far more accurate than using pressure sensors on the shovel, according to Metalgalante Carmix.

The Carmix 45FX uses a double mixing screw and a drum with hydraulic motor rotation and a planetary gearbox to mix the concrete. It has an automatic hydraulic loading system with a 600-litre capacity bucket which loads aggregates into the drum: eight buckets to fill the drum. Like all Carmix mixers, the vehicle is 4×4, designed for off-road or remote locations.

Metalgalante Carmix has already sold the first 45FX units to customers in South America and South Africa. It has already had enquires from France, said Galante.

Stand B5 414
