Debuting EvoQuip showcases Cobra 290R ‘compact with impact’ crusher

First published in bauma Preview - March 12, 2019

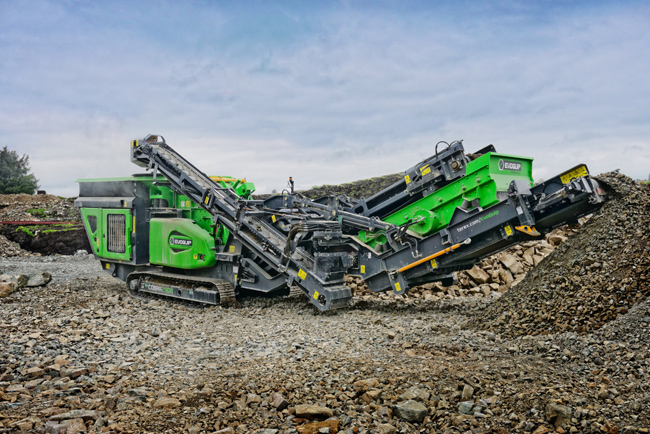

EvoQuip’s Cobra 290R impact crusher

EvoQuip is debuting with the Cobra 290R—the newest addition to its ‘compact with impact’ crushing range.

A closed-circuit version of the Cobra 290, the Cobra 290R incorporates a 2.74m x 1.5m post screen that ensures the required product specification is achieved with oversize material either being recirculated back to the crusher or stockpiled. The ability to quickly detach the complete afterscreen system, including the oversize conveyor, provides the option of either running the machine in standard mode or transporting separately.

The compact Cobra 290R closed-circuit impact crusher is versatile, easy to use and can operate in the most demanding of applications, said to make it the perfect solution for many industries. The track and crush feature is standard, giving the operator the ability to move the machine using the optional remote control from the excavator cab without shutting down the crusher. Ground level access to the engine, hydraulics, service and refuelling points also ensures ease of use and serviceability for the operator. The rapid set up from ground level combined with the intuitive two-button start up sequence ensures the customer can be crushing in minutes.

The Cobra 290R uses a 235kW engine to power the fuel efficient and high performing direct drive system which gives potential throughput of up to 290tonnes/hour. The fully enclosed vibrating feeder incorporates an integrated pre-screen which can be configured to suit multiple applications by selecting from a range of interchangeable media. The chamber also features a hinged inlet lid which greatly reduces the risk of material bridging at the feed in point.
